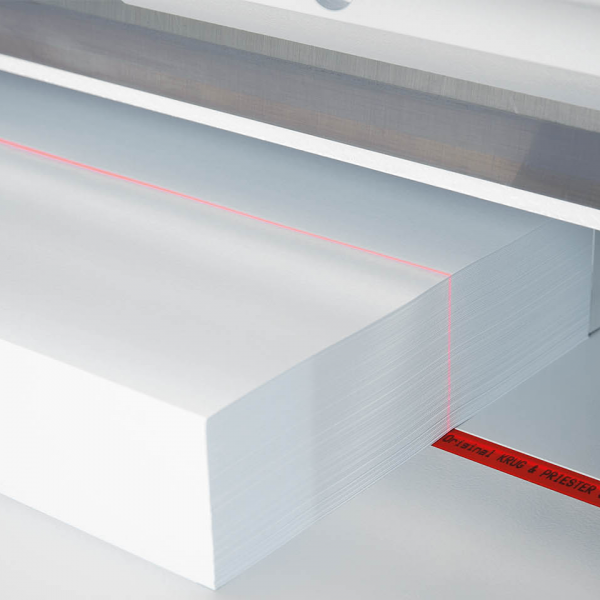

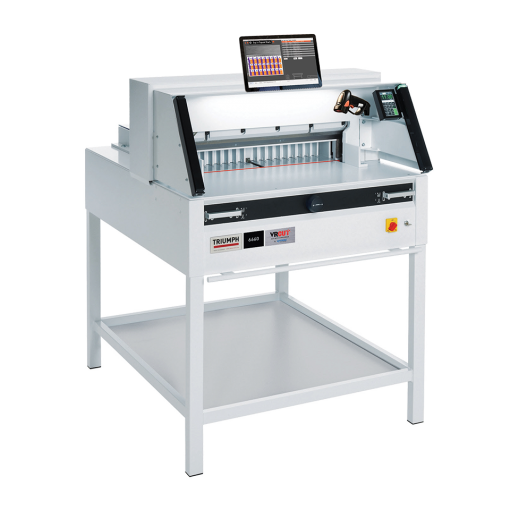

The MBM Triumph 6660 is a high-quality paper cutting machine designed to enhance efficiency and precision in cutting tasks. With a cutting width of 25 1/2 inches and a cutting height of 3 inches, it can handle a wide range of cutting tasks and materials. The digital measurement display, available in centimeters or inches, provides precise measurements accurate to 1/10 mm or 1/100 inch, while the LED optical cutting line assists in aligning your cuts with precision.
The MBM Triumph 6660 features a programmable cutter with an automatic clamp, electric back gauge, and digital touchpad, making programming and adjusting settings a breeze. The MBM Triumph 6660 is designed for convenience and versatility. It can store up to 99 programs with up to 99 steps in each, allowing for easy repetition of cutting tasks. The pre-programmed standard paper sizes and memory key for repeat cuts simplify workflow and save time.

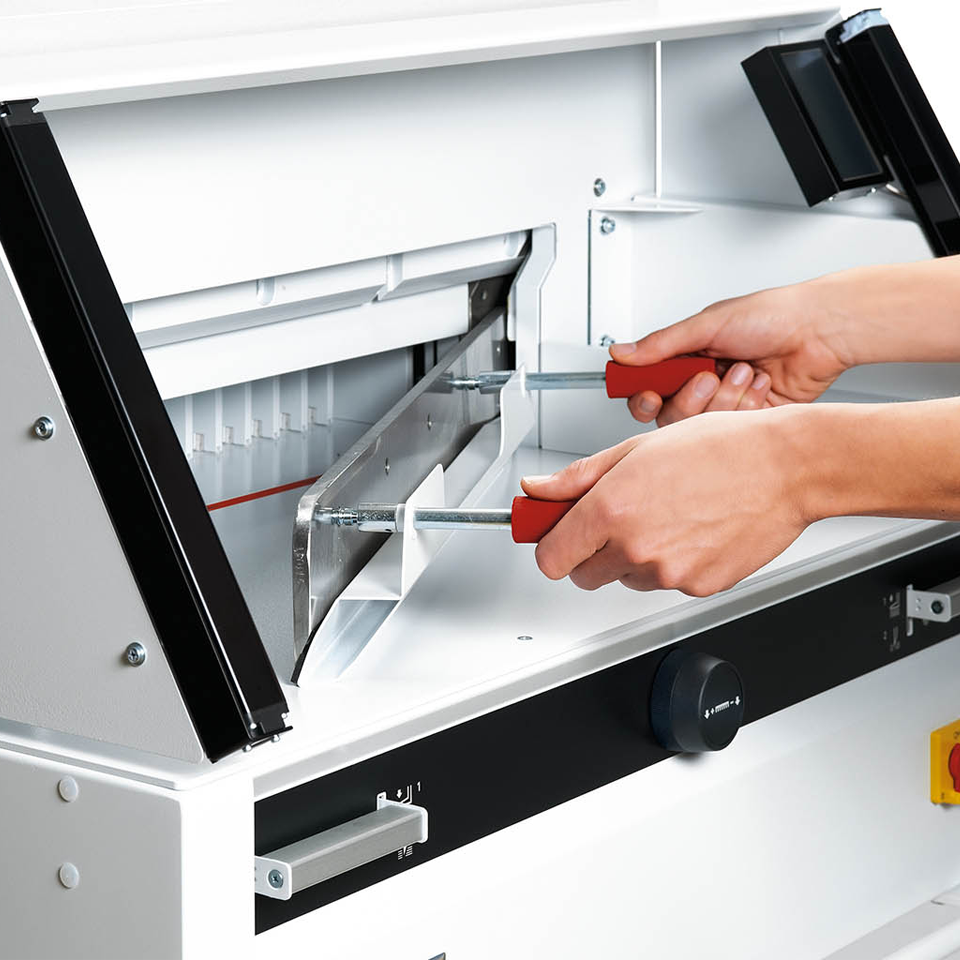

The Triumph cutters have a comprehensive SCS safety package to protect the operator during the cutting process and while performing routine maintenance. Specifically, the MBM 6660 cutter features an IR light beam safety curtain on the front table, a safety cover on the rear table, and a main switch with a safety lock for added security. The electric blade and clamp drive enable precise and controlled cutting, while the disc brake ensures instant blade stop for enhanced safety.
|Type||VRCUT Ready Cutters|
|Cutting Height||3 inch|
|Cutting Width||25 1/2 inch|
|Narrow Cut||1 inch|
|Length Behind Blade||24 inch|
|Safety Element||IR light Beam Safety Curtain|
|Electrical Requirements||115 V, 60 Hz (20 Amp. Dedicated Line Required)|
|Motor Output||2 HP|
|Dimensions (D x W x H)||48 x 39 x 51 inch|
